A Radio Frequency Identification Tag (RFID tag) is an electronic tag that exchanges data with a rfid reader through radiowaves.
Most RFID tags are made up of two main parts at least.
The first is antenna, which receives radio frequency RF waves. The second is an integrated circuit (IC), which is used for processing and storing data, as well as modulatingand demodulating the radio waves received/sent by the antenna.
Item
U8 9424
Brand
Cshinrfid
Material
Paper/PVC/PET

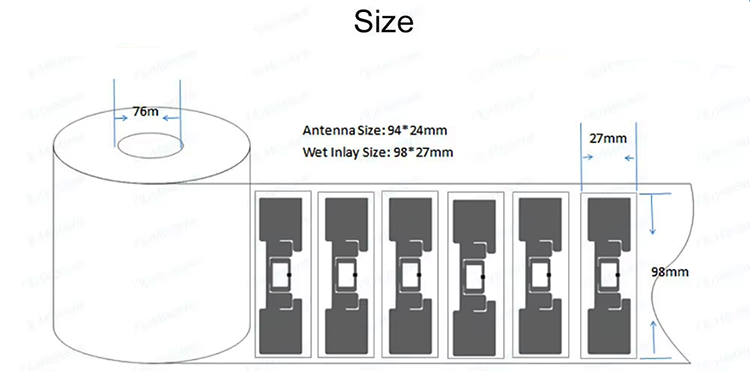

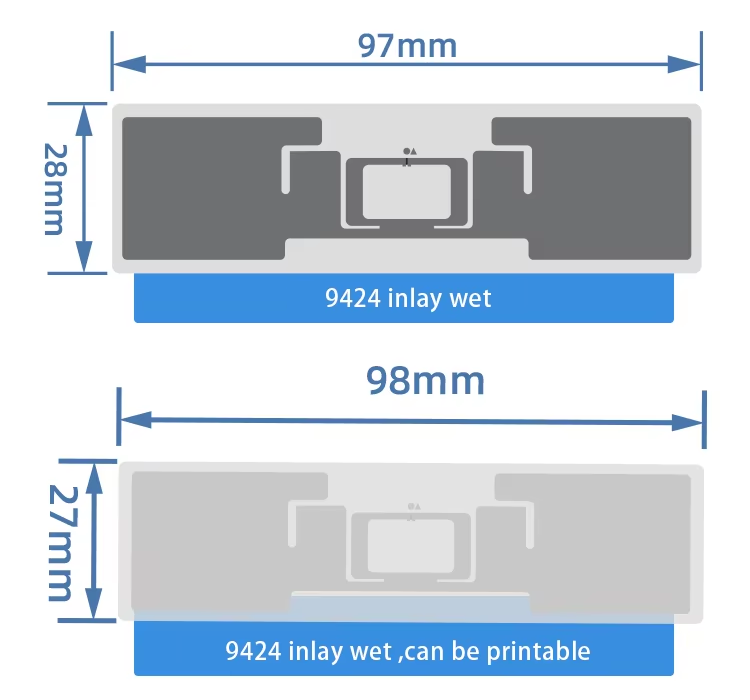

Antenna Size
94x24mm
Tag Size
98x27mm
Frequency
860-960mhz
Chip
U8 (Impinj and Alien chips are available)
Protocol
EPC Class1 Gen2 & ISO 18000-6C
Memory
EPC 128 bits,
Tag form factor

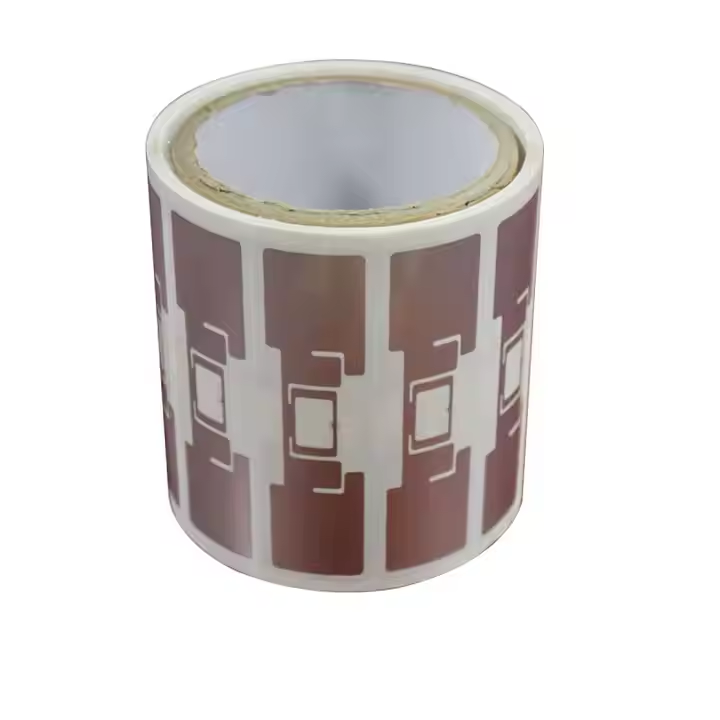

Dry inlay/Wet inlay/Label sticker
Applicable Surface Materials
Plastic, cardboard, glass
Attachment Method
Peel-and-stick
Operating temperature
-40°C ~ 85°C
Read distance
Up to 15m
Printing
Custom logo printing is available
Working mode
Passive, contactless

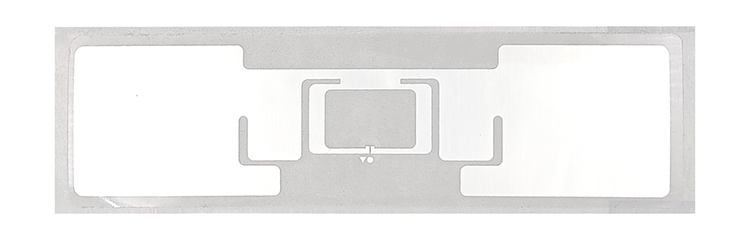

Packaging material: coated paper (PET substrate)+aluminum etching+adhesive .
